Manual testing

This procedure is only to show how the interaction with the C2SIM server works. This is only for demonstration, applications will do the same, only then programmatically.

Open on the C2SIM-SERVER the path openapi-ui.html. This page can be used to simulate REST call.

Joining the C2SIM server

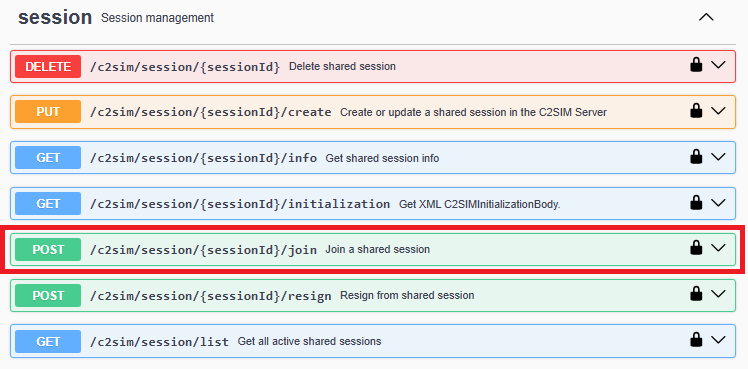

First we need to register at the C2SIM server, expand the join section:

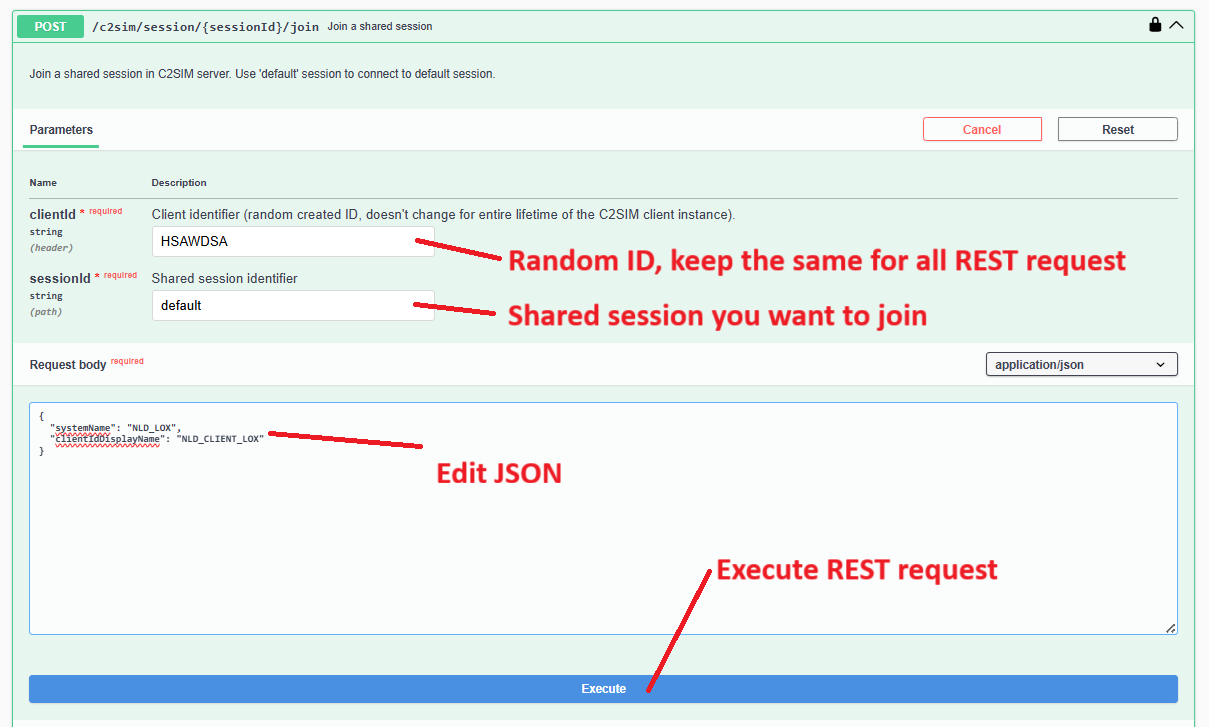

Click Try it out button and fill in the information for the request:

• clientId: HSAWDSA (or any combination of letters)

• sessionId: default (this shared session is always available on C2SIM-SERVER)

• systemName: NLD_LOX (or any system name)

• clientIdDisplayName: NLD_CLIENT_LOX (only used to make logfiles more readable)

Press the Execute button to make the REST request.

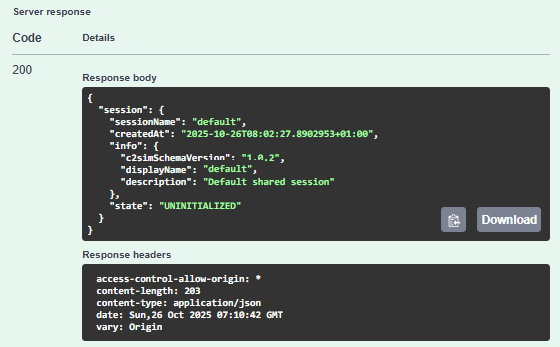

The status code 200 indicates that the C2SIM server processed the request. The response contains the status of the shared session default. Note that the C2SIMserver for shared session default is UNINITIALIZED.

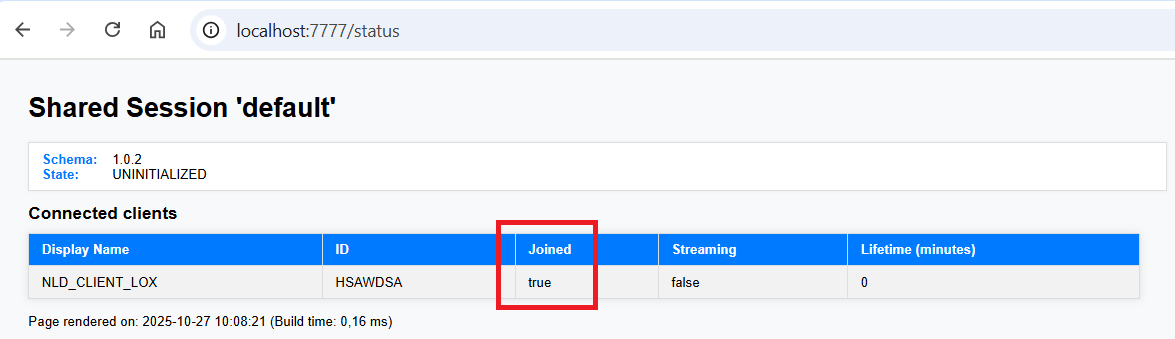

The C2SIM-SERVER endpoint status can be used to check if the client is joined.

Connecting WebSocket client

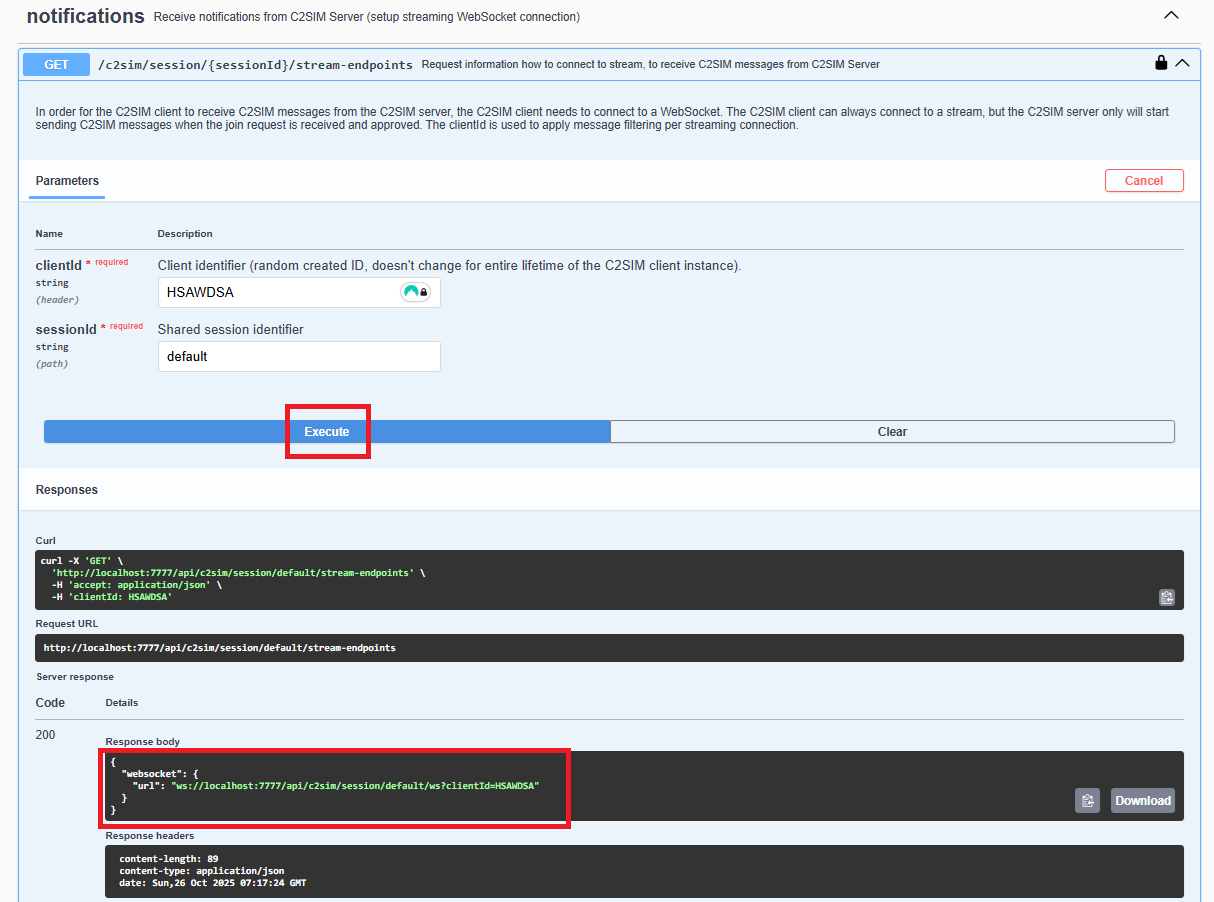

In order to receive C2SIM XML notifications a WebSocket client can connect to the C2SIM-SERVER. To get the WebSocket URL endpoint, use the stream-endpoints in the notifications section:

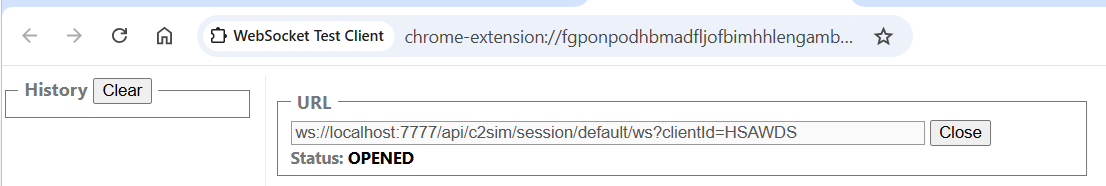

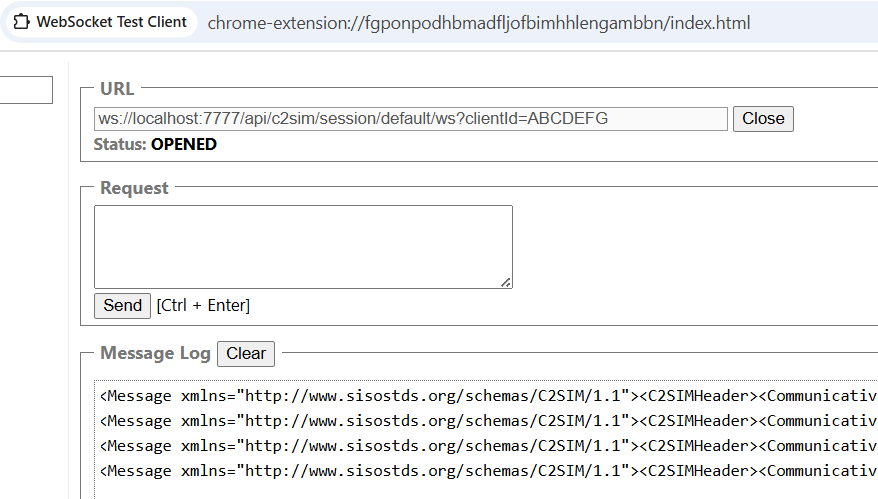

Any WebSocket client can be used, an easy way is to use a chrome browser extension. Search on google for chrome extensions websocket test client and install the extension.

Note: The web browser doesn't support ping (keep alive), so if there is inactivity the WebSocket connection will be automatically closed. Just reconnect! The C2SIM-SERVER will only send messages if the client ( HSAWDS) has joined and only messages send by other clients (won't receive messages the client self send).

Initialize C2SIM-server

The C2SIM-SERVER starts in UNINITIALIZED state. In order to send 'orders' and 'reports' the C2SIM-SERVER must be in RUNNING state.

• C2SIM Message SubmitInitialization (UNINITIALIZED => INITIALIZED)
• C2SIM Message C2SIMInitilization (INITIALIZING => INITIALIZING)
• C2SIM Message ShareScenario (INITIALIZING => INITIALIZED)
• C2SIM Message StartScenario (INITIALIZED => RUNNING)

Examples of these XML messages can be found the here.

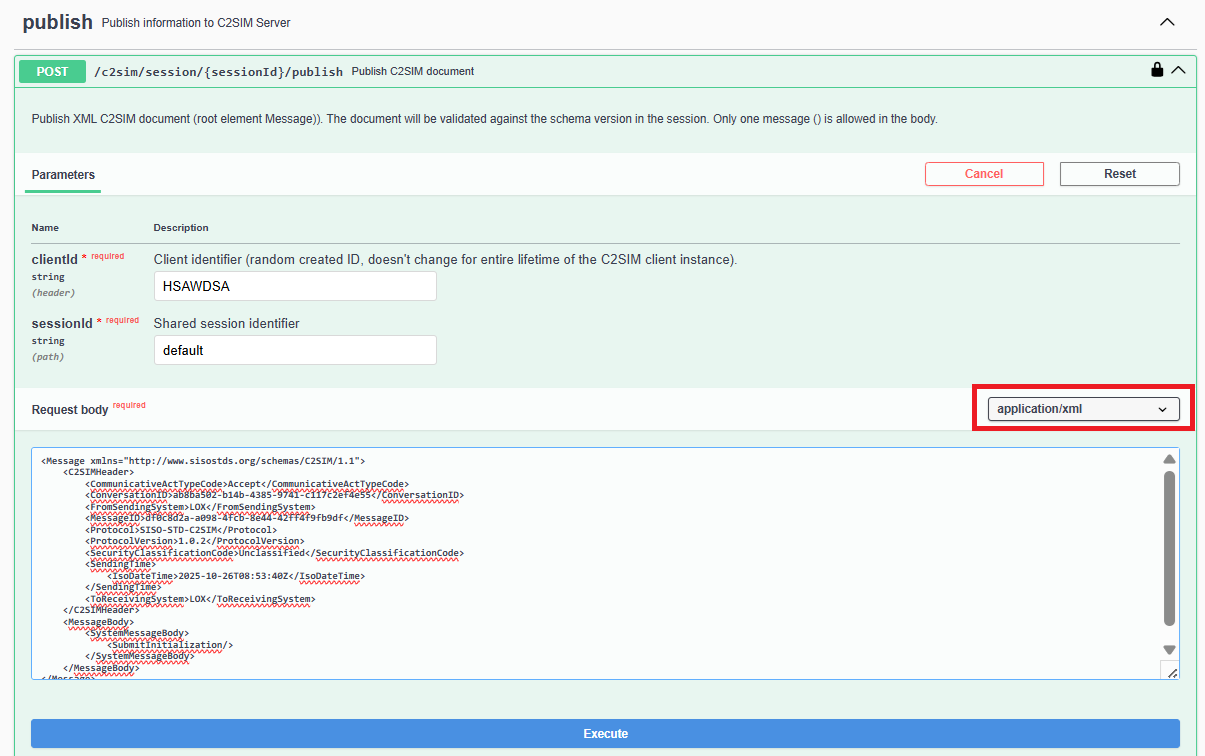

Sending the C2SIM Messages, open the publish section:

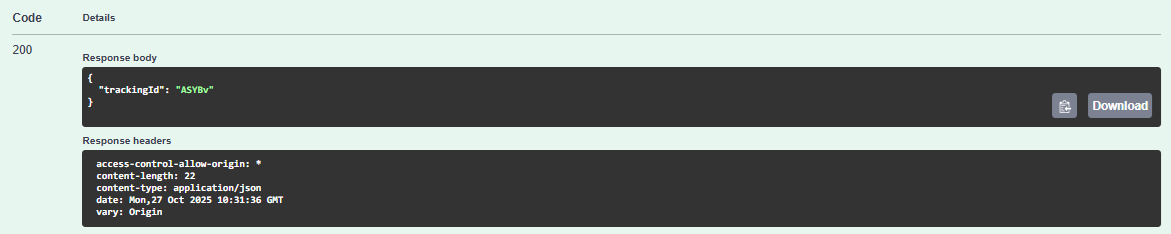

After Execute the status code should be 200 , indicating success. The trackingId can be used to track the request in the C2SIM-SERVER (debugging).

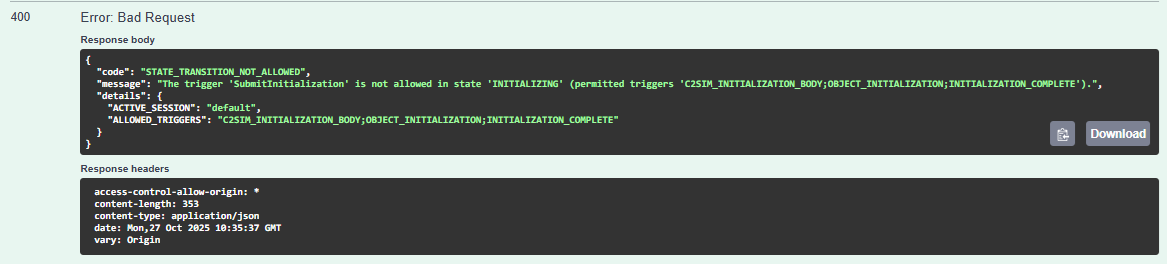

If a message is published that is invalid (invalid XML, not allowed), an error status code 400 is returned (with an error message).

All messages should be send to the C2SIM-SERVER to bring it into RUNNING state.

Checking Shared Session State

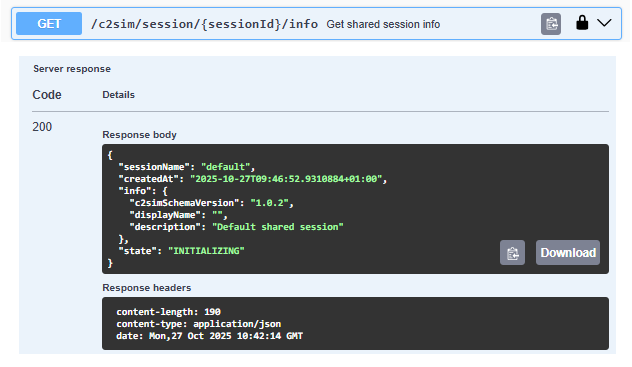

Use the REST info call:

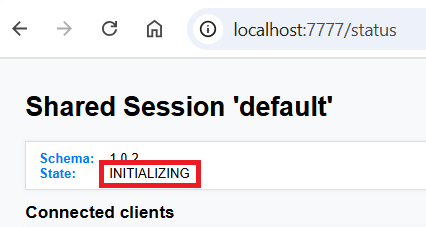

Or use the C2SIM-SERERVER URL/status:

WebSocket notifications

Because the client is publishing the C2SIM messages, it will not receive these messages over WebSocket. Create a second client with a new clientId (join with with procedure above) to receive the notifications.
