OpenID Connect (OIDC) Integration

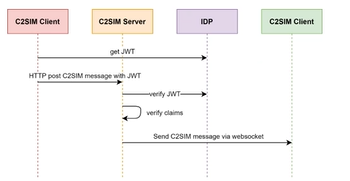

This section describes how the C2SIM server integrates with OpenID Connect (OIDC) for authentication and authorization.

OpenID Connect (OIDC) is an identity layer built on top of OAuth 2.0. While OAuth 2.0 is designed for authorization (granting access to resources), OpenID Connect adds authentication.

Within this project the keycloak implementation is used as Identity Provider (IDP).

Terminology

Authentication (Identity) - The process of verifying who is making the REST API call.

Authorization (Permission) - The process of verifying what the authenticated service is allowed to do.

OIDC Client Credentials Flow

The Client Credentials Flow is used for machine-to-machine (M2M) authentication, where no human user interaction is involved.

This flow is used when:

• The client is a backend service
• No browser login or user interaction is required
• The service needs an access token to call protected APIs
• Authentication is performed using a client secret

Recommended Client Configuration

Within keycloak a client should use the following settings (for client credential flow):

Setting	Value
Protocol	OpenID Connect
Client Type	Confidential
Client Authentication	Client secret
Service Accounts Enabled	Yes
Public Client	No

The difference between :

• client account: used for use without human interaction (automatic login)

• user account: used for use with human interaction (manual login)

Obtaining an Access Token Manually

For testing purposes, the Client Credentials Flow can be tested using the curl application, against the token endpoint (for example with Keycloak as IDP):

curl -X POST "https://your-keycloak.com/realms/YOUR_REALM/protocol/openid-connect/token" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials" \
  -d "client_id=YOUR_CLIENT_ID" \
  -d "client_secret=YOUR_CLIENT_SECRET" \
  -d "scope=c2sim"

To test the Client Credential Flow with the client id and client secret:

curl -X POST "http://localhost:8080/realms/c2sim/protocol/openid-connect/token" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials" \
  -d "client_id=c2sim-client" \
  -d "client_secret=RQOwgVBNzS3frhpLqoFatVJ2xTyPQBDV" \
  -d "scope=c2sim"

The response will contain a JWT access token. A JWT decoder, like JWT.IO, can display the content of the access token (JSON notation).

---

Client Secret

The client secret is a shared secret used by confidential clients to authenticate with the identity provider.

Warning

Security Notice

• The client secret must never be exposed in frontend or browser-based applications.
• It must only be stored securely on backend systems.

---

OpenID Configuration Discovery

The C2SIM client can use the OpenID Connect Discovery instead of directly configuring the OIDC token endpoint.

For Keycloak, the discovery endpoint has the following format:

http://<hostname>:<port>/realms/<realm>/.well-known/openid-configuration

Example:

http://localhost:8080/realms/c2sim/.well-known/openid-configuration

Some libraries will automatically add /.well-known/openid-configuration to the URL.

The meta data response includes information like:

• issuer

• authorization_endpoint

• token_endpoint

• userinfo_endpoint

• jwks_uri

• registration_endpoint

• scopes_supported

• response_types_supported

• grant_types_supported

The token_endpoint contains the url to the token endpoint.

"token_endpoint": "http://localhost:8080/realms/c2sim/protocol/openid-connect/token"

C2SIM-Specific claims

The c2sim scope includes domain-specific claims required by the C2SIM server.

Claim	Description
communicativeActTypeCode	Type of communicative act
fromSendingSystem	Originating system
replyToSystem	Reply destination system
securityClassificationCode	Security classification level
toReceivingSystem	Target receiving system
messageType	C2SIM message type
systemMessageType	System-level message type

C2SIM Scope

The scope c2sim contains all claims related to C2SIM (see C2SIM specific claims)

---

JWT Access Token

The access token in the RESTful API call is a bearer token, also known as JSON Web Token (JWT.

A JWT is Base64 URL-encoded and consists of three parts separated by a dot (.):

HEADER.PAYLOAD.SIGNATURE

JWT Structure

Part	Description
Header	Metadata about the signing algorithm
Payload	Claims (token data)
Signature	Digital signature used for verification

Example decode payload

{
  "exp": 1770833986,
  "iat": 1770832186,
  "jti": "69783bc1-1f78-4c80-a91e-e9ba0c2f7508",
  "iss": "http://localhost:8080/realms/c2sim",
  "sub": "d14adf87-b882-4e99-aeaf-b2e6d0ae8a10",
  "typ": "Bearer",
  "azp": "c2sim-client",
  "scope": "c2sim",
  "securityClassificationCode": "UNCLASSIFIED",
  "clientHost": "172.19.0.1",
  "messageType": "ORDER",
  "clientAddress": "172.19.0.1",
  "fromSendingSystem": "C2SIM",
  "client_id": "c2sim-client"
}

Important generic claims (not C2SIM specific)

typ	The Bearer means the access token can be used for REST header  Authorization: Bearer
exp	Expiration time of the access token in epoch notation. After this timestamp the token is not valid anymore.
aud	Who the token is intended for (resource/server). The C2SIM server can demand the c2sim value here.

Using the JWT in REST Calls

Every authenticated REST request must include the Authorization header:

Authorization: Bearer <JWT_ACCESS_TOKEN>

Example:

GET /c2sim/api/messages HTTP/1.1
Host: your-server
Authorization: Bearer eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9...

Without this header, the C2SIM server will reject the request.

Time server (NTP)

If the IDP provider (Keycloak) or any IDP consumer has an incorrect system time, a valid access token may be rejected as expired (“token expired”).

To prevent this issue, all participating systems should synchronize their clocks using an NTP server, ensuring consistent and accurate time across the environment.

Token expiration

Each access token issued by the IDP includes its expiration time, which is defined by the IDP. The client is responsible for renewing the access token before it expires.

For CWIX2025, the expiration time was configured to last for the entire duration of the exercise, meaning the token only needed to be obtained once. In commercial systems, however, expiration times are typically much shorter—usually ranging from 1 to 30 minutes.

Secure connection (TLS)

When using OIDC, all RESTful calls that include an Authorization header must be sent over TLS (HTTPS).

If an unencrypted HTTP connection is used, the access token can be intercepted using a network monitoring tool (e.g., Wireshark). Because a bearer token grants access to whoever possesses it, an attacker who captures the token could reuse it until it expires.

For convenience, some environments use unencrypted HTTP. However, this is insecure. TLS requires valid, trusted certificates, and self-signed certificates are generally not acceptable in production environments because they cannot be reliably validated by clients.

Keycloak

The C2SIM claims are stored as user attributes (the values of the claim). A client in keycloak is assigned to a service-user-account.

Warning

In Keycloak version 21 and earlier, admins could freely edit user attributes directly in the Admin UI. The later release removed this feature. Attributes are now configured in User Profile configuration. The C2SIM claims are not default part of this. The management of C2SIM Claims are done trough an external tool, and not the Keyclaok Admin UI.
